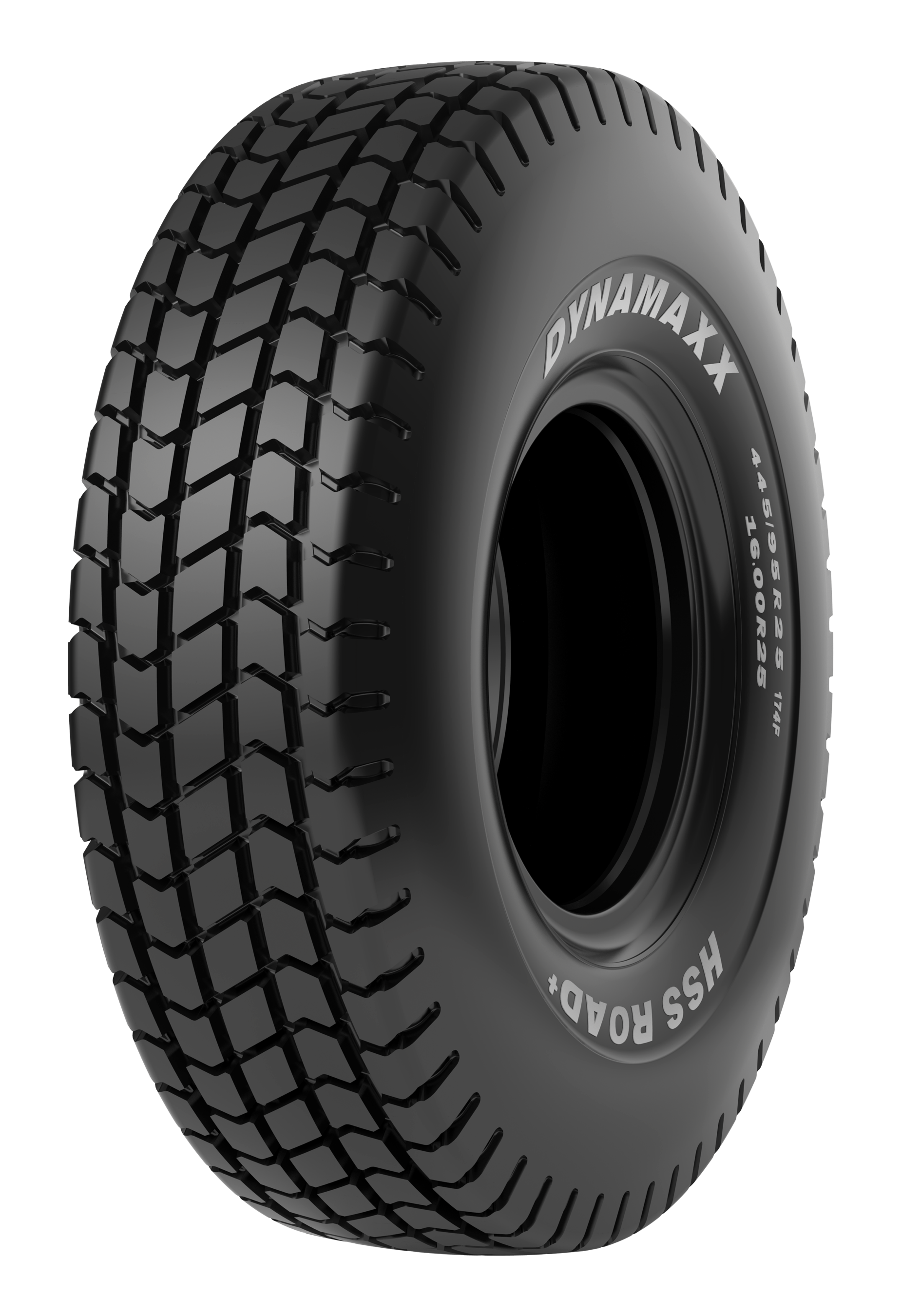

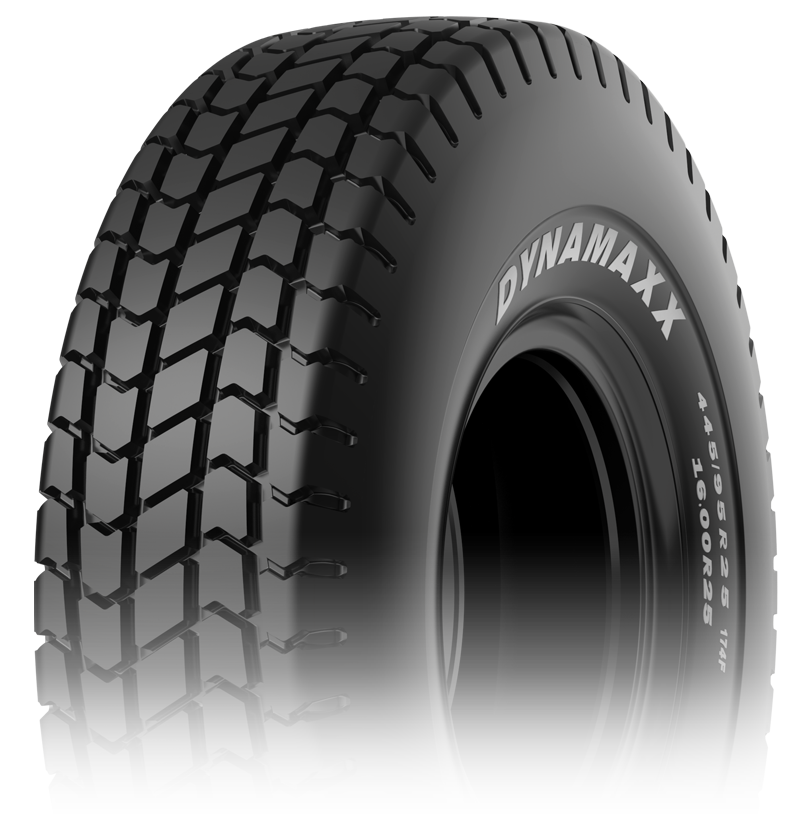

HSS Road+
Tire Description:
The HSS Road+ provides excellent stability and traction with a heat-resistant undertread compound for high-speed mobile cranes. DOT marked and F-speed rated for highway use.Engineered for:
Mobile Cranes
| SizeTire Size | RatingSpeed Rating | TypeTire Type | RimRim Width | O.D.Outside
Diameter |
S.W.Section Width | T.D.Tread Depth | Infl.P.Inflation Pressure | L.C.C. (lbs/kg) Load Carrying Capacity (lbs/kg) |
L.I.Load Index |
| in mm |
in mm |
32nds mm |
psi kPa |
50 mph 80 kph |
|||||
| 14.00R24 (385/95R24) |
*** | TL | 10.00W | 53.7 1364 |
15.2 386 |
30 24 |
130 900 |
13200 6000 |
170F |
| 14.00R25 (385/95R25) |
*** | TL | 9.50/1.7 CR 10.00/1.5 |
53.7 1364 |
15.2 386 |
30 24 |
130 900 |
13200 6000 |
170F |
| 14.00R24 (385/95R24) |
*** | TL | 11.00/1.7 CR 11.25/2.0 |
58.4 1483 |
15.2 386 |
35 28 |
130 900 |
14800 6700 |
174F |
HIGHWAY
The HSS Road+ provides excellent stability and traction with
a heat-resistant undertread compound for high-speed mobile
cranes. DOT marked and F-speed rated for highway use.
The Dynamaxx HSS Road+ is engineered for highway use and is ideally suited for mobile cranes
